SIDE DRAFT AIR CLASSIFIER
Features & Benefits
The Side Draft Air Classifier is a versatile, energy-efficient system for consistent separation of particles in the 100 to 400 mesh range offering a compact design and durable wear-resistant materials. The Side Draft delivers consistent, high-quality product regardless of variations in feed material through user-friendly air flow and speed changes. The Side Draft is capable of processing both abrasive and non-abrasive materials with optional ceramic wear liners.
Typical applications include aggregates, crushed stone, ceramics, chemicals, coal diatomaceous earth, fly ash, food products, gypsum, hydrated lime, minerals, shredded fibres, silica sand and soda ash.
How it Works

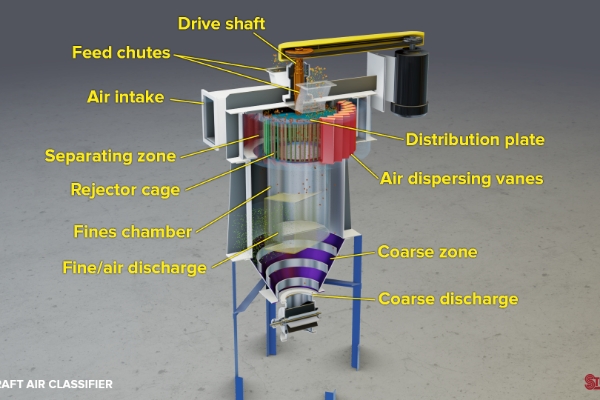

Materials are fed into the top of the Side Draft Air Classifier through the feed inlet and are evenly conveyed across the top of the distribution plate and then drop into the separating zone, creating a uniformly dispensed curtain of material. The forces generated by the rejecter cage and process air subject the curtain of material to particle size classification. High separation efficiencies and precision of classification are obtained by controlling air flow and rejector cage speed. The multi-pin or multi-blade, variable-speed rejector cage allows only the selected fines to pass into the fines chamber and exhaust into the system collector. The coarse particles, after passing through the separating zone, fall into the coarse outlet and exit by gravity.
Models:
SD-20 to SD-180 Product Fineness: 100 mesh (150 μm) - 400 mesh (38 μm)
Capacity:
4 - 1,150 TPH
